Proact Products

Anchor/base plates


 Our own range of Anchor/base plates suitable for Polytunnels, Scaffolding and Construction. No upfront tooling costs to worry about, we've invested in the tooling ourselves to bring you this highly competitive range of products.

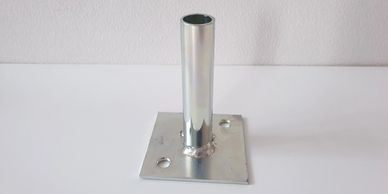

Small Anchor Plates

Small anchor plates for polytunnels and scaffolding.


Small Bases: 3mm thick base 75mm x 75mm, 2 hole configuration. Tube 22.22mm diameter, 2.03mm wall, to fit 28mm tube.

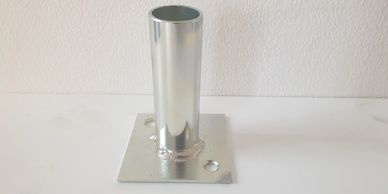

Medium Anchor Plates

Medium Anchor plates for polytunnels and scaffolding



Medium Bases: 3mm thick base 75mm x 75mm, 2 hole configuration. Tube 31.75mm diameter, 2.03mm wall, to fit 38mm tube.

Large Anchor Plate

Large Anchor plate for polytunnels and scaffolding.

 Large Bases: 4mm thick base 150mm x 150mm, 4 hole configuration. Tube 31.75mm diameter, 2.03mm wall, to fit 38mm tube.

X.Large Anchor Plate

Extra Large Anchor plate for polytunnels and scaffolding.

 X.Large Bases: 4mm thick base 150mm x 150mm, 4 hole configuration. Tube 44.45mm diameter, 3.0mm wall to fit 50mm and 60mm tube.

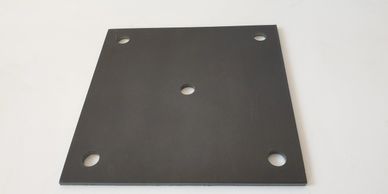

Large Bases


 Large Base:  4mm thick base 150mm x 150mm, 5 hole configuration. Mild steel, natural finish.

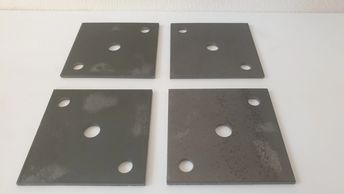

Small Bases

Small Bases

 Small Bases:  3mm thick base 75mm x 75mm, 3 hole configuration. Mild steel, natural finish.

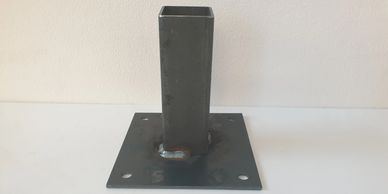

X.Large Anchor Plate ST


 X.Large Bases: 4mm thick base 150mm x 150mm, 4 hole configuration. Tube 50mm x 50mm, 2.5mm wall.

Large Anchor Plate ST


Large Bases: 4mm thick base 150mm x 150mm, 4 hole configuration. Tube 30mm x 30mm, 2.5mm wall.

Small Anchor Plate ST


 Small Bases: 3mm thick base 75mm x 75mm, 2 hole configuration. Tube 30mm x 30mm, 2.5mm wall. .

Industrial Decorative Panels

Industrial Perforated Panel


Industrial, Perforated, Decorative Panels, produced to nearly any practical length, 115mm wide, holes 28mm diameter.
